BK Type Control Transformer All Copper Series Single Phase Isolation Transformer BK-50VA 380 220 V to 220 127 110 36 24 12 V Machine Control Transformer(50 VA Input 380220V,Customized)

The control transformer is mainly suitable for AC 50HZ (or 60HZ), voltage 1000Vand below circuit, can work continuously for a long time under rated load. Usuallyused in machine tools, mechanical equipment as electrical control lighting andindicator power supply.Input voltage: 380-220V, 380V, 220V, other voltages can be customizedOutput voltage: 220-36-24-6V, 127-36-12-6V, 110-36-24-6V, 36-24-12-6V, 110V,36V, 24V ;Coil Structure : ToroidalUsage : LightingModel Number : BK-50VACoil Number : AutotransformerPhase : SINGLEOrigin : ChinaCertification : CERated Voltage : 380 220 VCoil Material : Copper WindingPhase : Single TransformerFrequency : 50HZ/60HZPower : 50 VA

• [Working Principle]: It works by electromagnetic induction principle.
• [Product features]: Its main features include small size, safe and reliable wiring, high protection level, good performance, etc., can work effectively for a long time in the rated load.
• [Application scope]: BK type control transformer is widely used in industrial and mining enterprises, machine tool control, local lighting and indicator power supply and other fields.

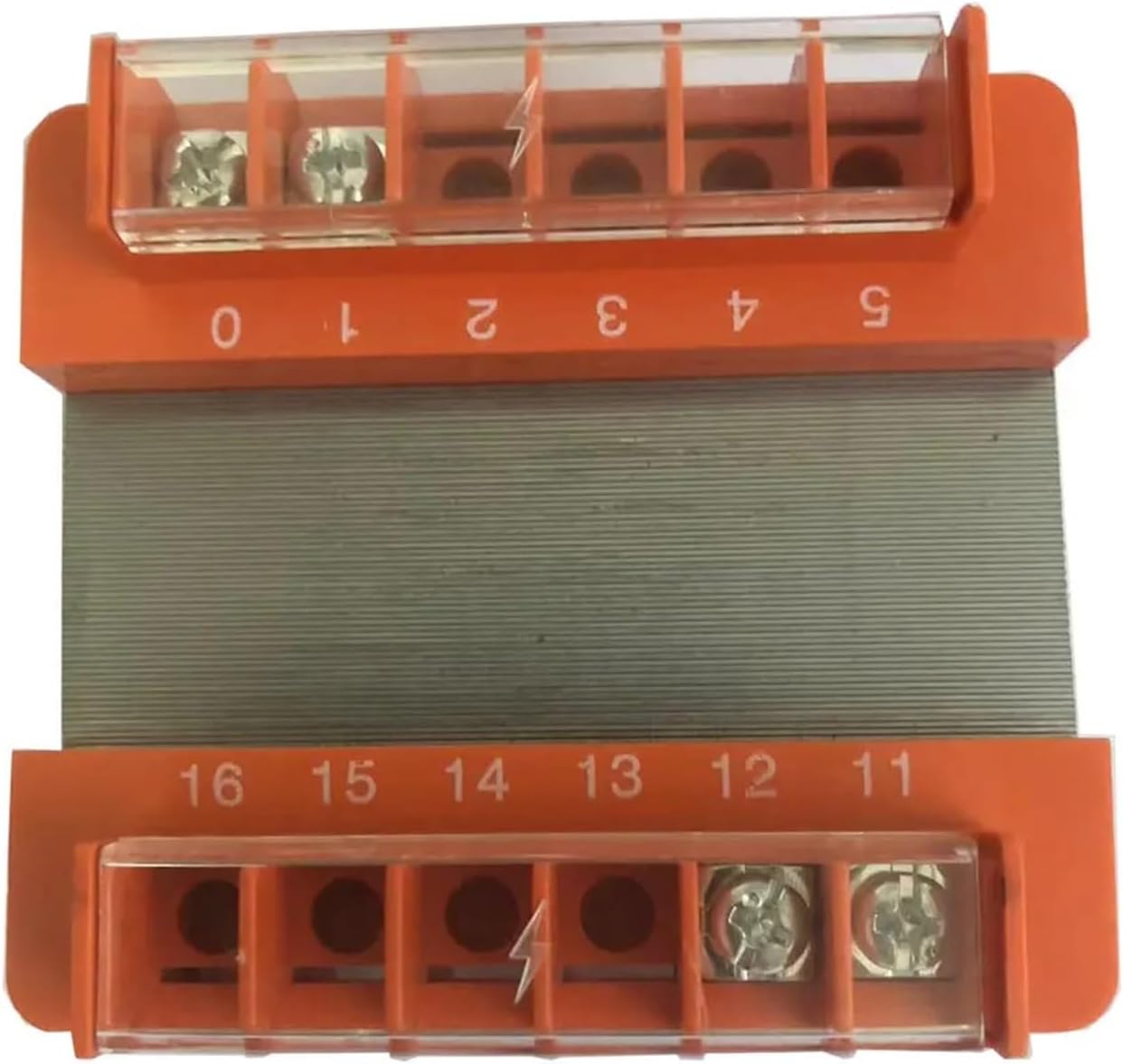

• [Wiring]: Output terminal 0 is the common terminal, and the other two numbers form a different input voltage, output terminal 11 is the common terminal, and the other numbers form a different output voltage.
• [Note]: Before use, must test the circuit, the grid voltage is rated input voltage value, allow deviation +5%, such as more than the range, should consider adding a voltage regulator in the front section to ensure that the transformer reliable and normal operation.
