2 Channels Digital Oscilloscope 50M Sampling Rate 10Mhz Analogue Bandwidth Patterns 6A Current Waveform Measurement ,Professional Designed

<p>Features:</p><p>6. 6A current waveform measurement, 20K storage depth, support waveform compression expansion.</p><p>7. Current waveform stepless compression, the maximum compression times 100 times, can be compressed arbitrarily to display the current change curve.</p><p>8. Diversified use, the use of a wider ranges of areas, home appliance repairs, cellphone repairs, automotive repairs, electronic interest in DIY research and development, power source repairs, and so on.</p><p></p><p>Specifications:</p><p>Name: Digital Oscilloscope</p><p>Material: plastics+metal</p><p>Battery: 1 * 2500mAh battery (included)</p><p>Sampling rate: 50M/Channels</p><p>Channels: 2</p><p>Analog bandwidth: 10Mhz/Channel</p><p>Actual bandwidth: 2Mhz/Channel</p><p>Input impedance: 1</p><p>Storage depth: 20Kb</p><p>Parameter display: 12</p><p>Current ranges: 0-6A</p><p>Minimum precisions: 2mA</p><p>Sampling rate: 2.5KSa/S</p><p>Reveal: 3.2" LCD</p><p>Resolution: 320*240</p><p>Charging voltage: 5V</p><p>Working hours: 4.5-6h</p><p>Firmware upgrade: Support</p><p>Related Products: </p><p>oscilloscope, </p><p>portable oscilloscope, </p><p>automotive oscilloscope, </p><p>oscilloscope automotive, </p><p>lab oscilloscopes, </p><p>osciloscopio, </p><p>osciloscopio automotriz, </p><p>handheld oscilloscope, </p><p>digital oscilloscope, </p><p>usb oscilloscope</p>

• 1. Dual channel oscilloscope with 50M sampling rate, 2MHz actual bandwidth, and 10MHz analog bandwidth.
• 2. With complete trigger functions (single, normal, automatic), both periodic analog signals and non-periodic digital signals can be freely used.
• 3. Wide measurement ranges design, supports measurement of voltage signals up to ±400V.

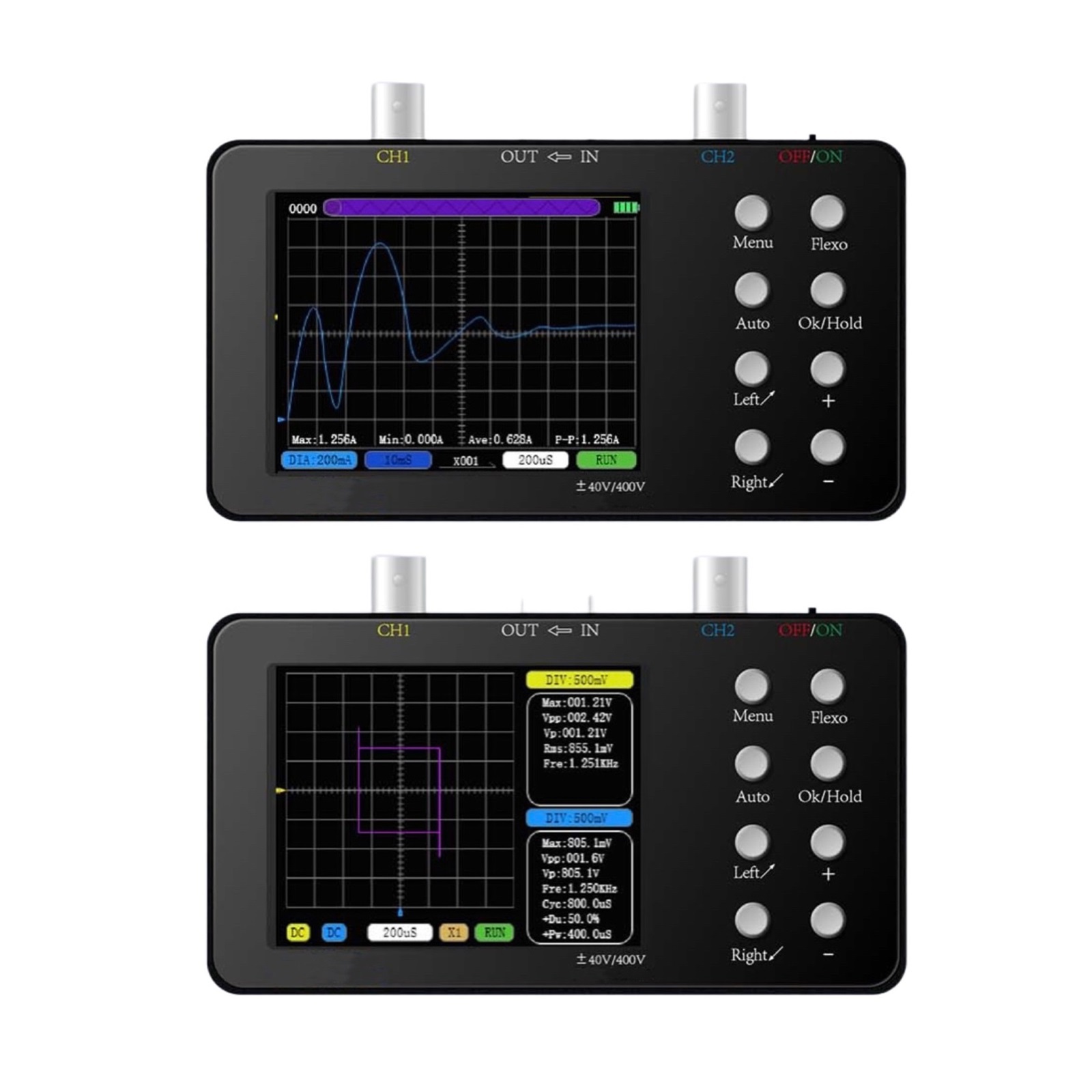

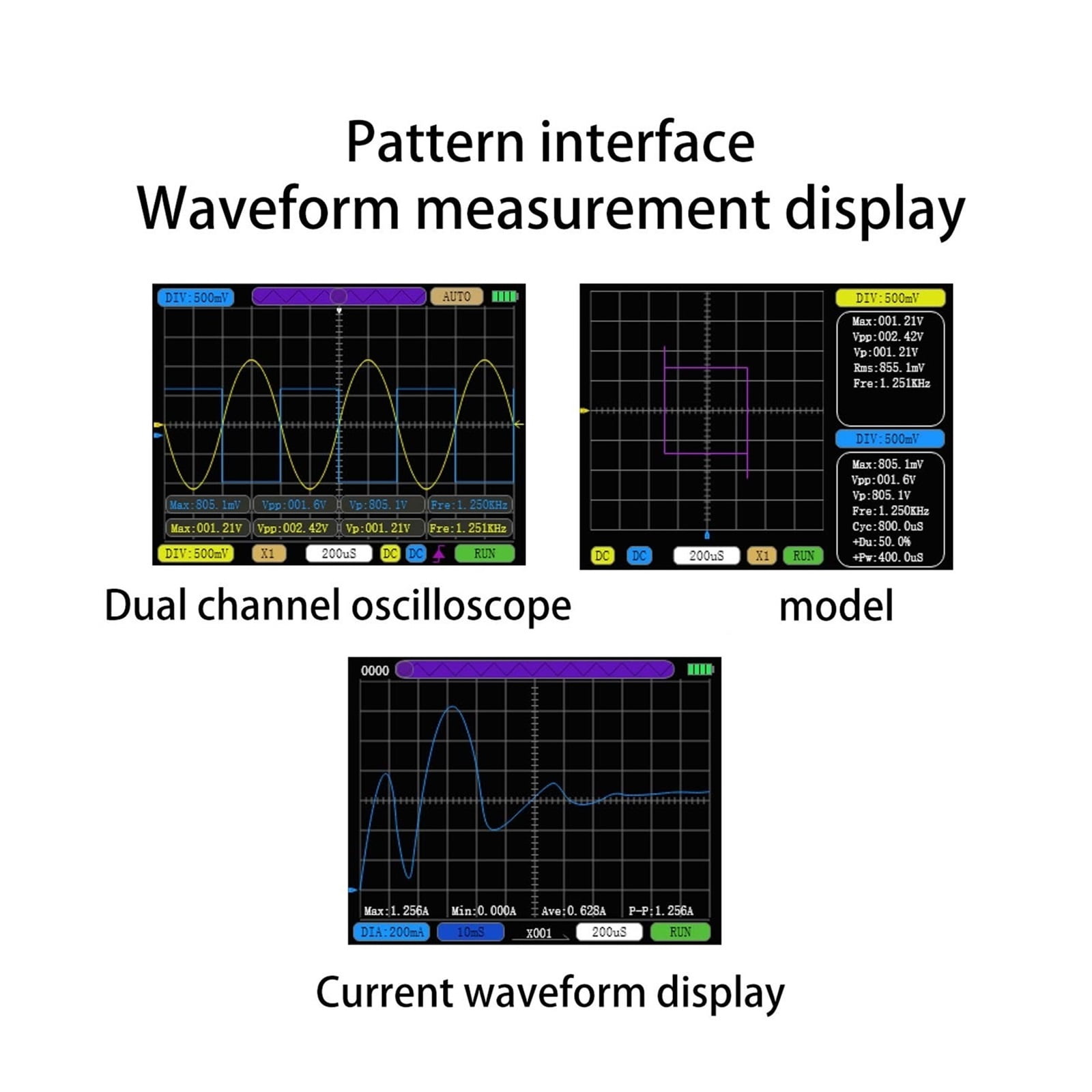

• 4. Waveform measurement display function, 3.2-inch LCD display, 320 * 240 resolution, three display modes design, you can easily adjust to dual-channel oscilloscope mode, XY model, and current waveform display.
• 5. Equipped with efficient one-button AUTO, without cumbersome adjustment to display the measured waveform.
